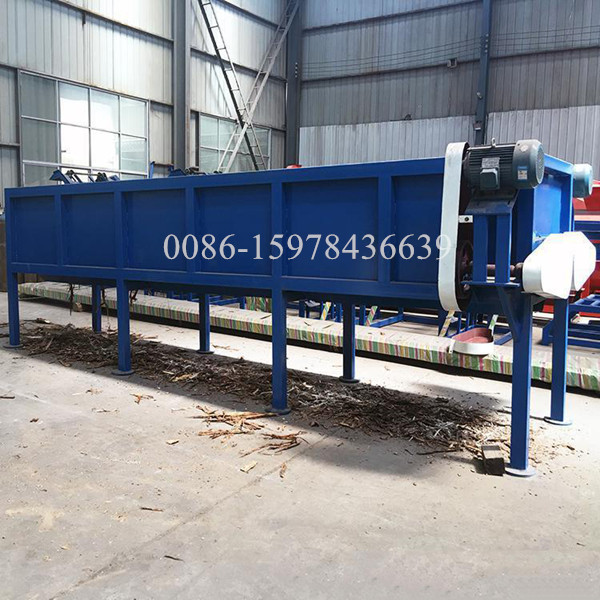

Bark Peeling Machine

Use Range:

       Trough Bark Peeling Machine is used in large, medium and small paper mills and pulp mills, etc., as well as products necessary for wood processing by enterprises in various industries, such as wood chip mills, wood storage yards, wood processing plants, forest plants, and wood-based panel plants ( Such as plywood factory, medium density fiberboard factory), etc., in recent years, my country has vigorously harvested forestry, and the southern forest area has built nearly 10 million acres of poplar forest, which requires the use of a large number of wood debarkers.

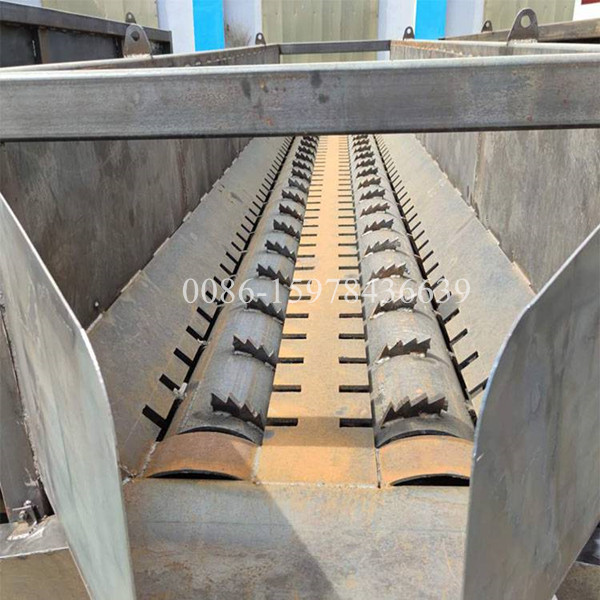

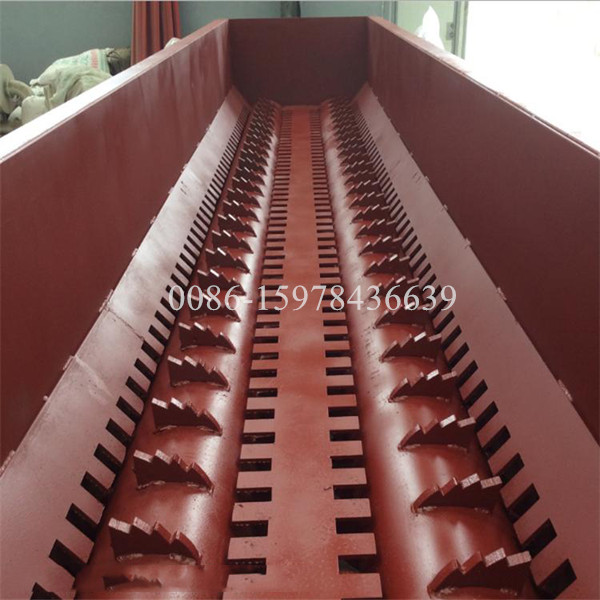

Bark Stripping Machine is also known as trough double-roller wood peeling machine. This machine uses the force of a rotor with peeling teeth to make the peeling machine more efficient, faster and more productive. Make the wood section circulate in the trough plate of the silo again and again, and also move around the wood section's own axis and jump irregularly.

Features of double-roller Bark Peeling Machine:

1). It adopts an open silo, which can feed in from one end and discharge at the other end, which overcomes the shortcomings of the existing drum-type peeling machine for feeding and discharging, and the segmented working method, and the work efficiency is high.

2). Due to the impact of the teeth on the wood section, the wood section not only circulates in the casing, but also revolves around itself, so the peeling efficiency is high. It has a good peeling effect on eucalyptus, poplar and other difficult-to-peel tree species.

3). It has strong adaptability to wood. It can peel wood segments of different tree species, diameters, lengths and shapes. Due to the back and forth movement and irregular beating of the wood segments, the concave part of the curved wood segment can also be very good with the peeling teeth. contact. Therefore, the stripping rate of curved logs is much higher than that of other drum types.

Application scope of double-roller Bark Peeling Machine:

It is suitable for peeling freshly cut coniferous wood and some hardwoods, and also for peeling some frozen wood and dry wood.

The difference between a single-roller peeling tank and a double-roller peeling tank:

1). The single-roll peeling tank adopts side openings, which has a high peeling rate and is very labor-intensive;

2). The double-roller peeling tank can be linked in multiple sections;

3). The single-roller debarking trough is suitable for wood over 20 cm;

4). The single-roller peeling tank can be divided into different diameters such as 426, 480, 508, 600, 800, etc. according to the diameter of the roller.

Bark Peeling Machine Technical Parameter:
