Wood Drum Chipper

Raw Material

Output Material

Wood Drum Chipper is a traditional product. Over the years, it has been widely used by domestic and foreign merchants for its superior product performance, high quality, and high cost performance. Drum chipper is a special equipment for preparing high-quality wood chips. It is suitable for paper mills, particleboard factories, fiberboard factories, wood chip production bases, and wood chip export bases. It can cut logs, small-diameter wood, etc. into high-quality industrial wood chips with uniform length, smooth incision, and uniform thickness. It can also cut branches, boards, etc.

The wood is fed in through the feed port. When the wood contacts the cutting blade, it is cut with the high-speed rotation of the cutting disc. The cutting mechanism is a rotating drum with several flying knives installed on it. The flying knives rotate. The wood is processed into wood chips. There are multiple square through holes on the outer edge of the drum. The cut qualified pieces fall through the mesh screen holes and are discharged from the bottom. The large pieces will be cut again in the machine.

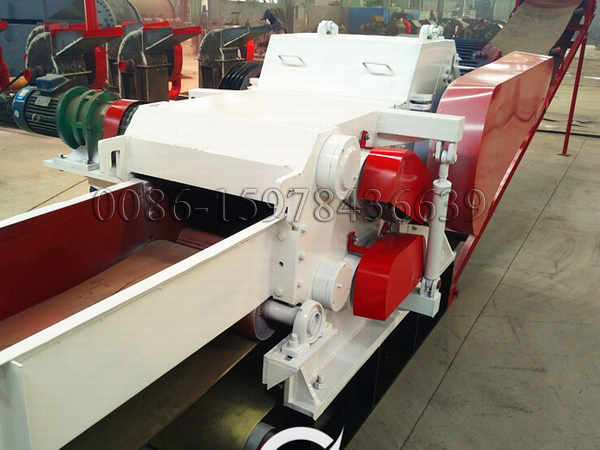

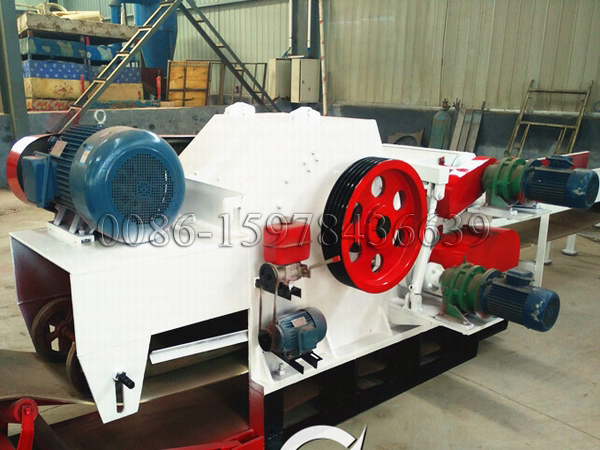

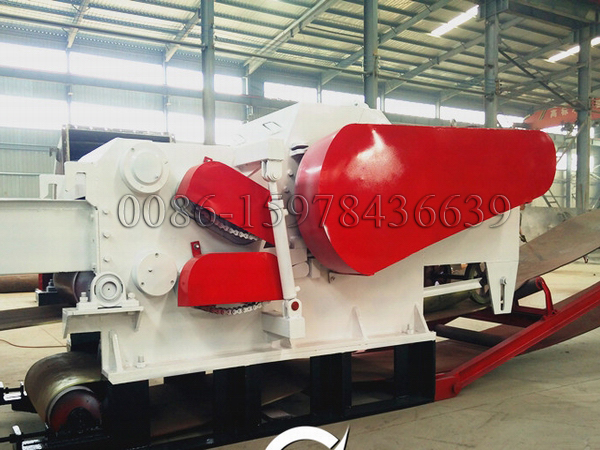

The drum chipper consists of a body, a knife roller, an upper and lower feeding mechanism, a hydraulic system, a feeding device and other parts.

1. Machine body: Welded with high-strength steel plates, it is the supporting foundation of the entire machine.

2. Knife roller: Two, three or four flying knives are installed on the knife stick. Specially manufactured flying knife bolts are used to fix the flying knives on the knife roller through the pressure block.

3. Hydraulic system: supplied from the oil pump to the oil cylinder, the cover can be activated to facilitate the replacement of the blade; during maintenance, the upper feeding roller assembly can be lifted to facilitate adjustment of the gap between the flying knife and the bottom knife and the disassembly and assembly of the comb plate.

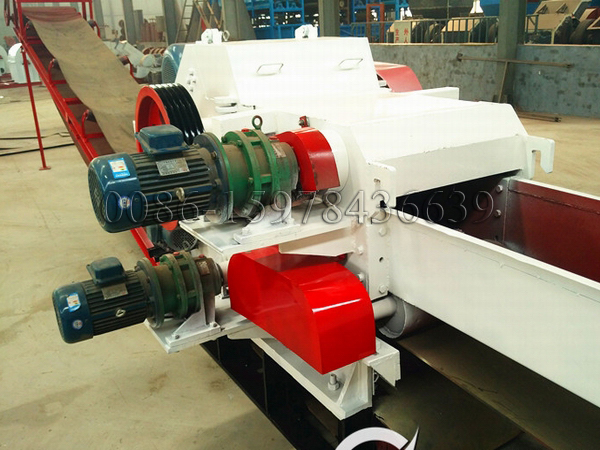

4. Upper and lower feeding mechanism: It consists of a feeding interface, upper and lower feeding rollers and a feeding gap adjustment mechanism. The wood entering from the feeding interface is pressed by the upper and lower feeding rollers and fed to the cutting mechanism at a certain speed. Control the size of cutting wood chips; when processing thick wood, it is adjusted by the feed gap adjustment mechanism.

Wood Drum Chipper Technical Parameter:
