Sawdust Making Machine

Sawdust Making Machine

Sawdust Making Machine

『Capacity』:1500-2000kg/h

『Output Size』:<300mm

『Raw Material』:Pine Wood, Miscellaneous Wood, Poplar Wood, Fir, Raw Bamboo...

  • Wood Log
    Wood Log
  • Wood Plate
    Wood Plate
  • Wood Block
    Wood Block
  • Branch
    Branch

  • + More


0086-15978436639

   Raw Material After Crushing

Wood Chipper(图2)


Sawdust Application

Sawdust Making Machine(图2)

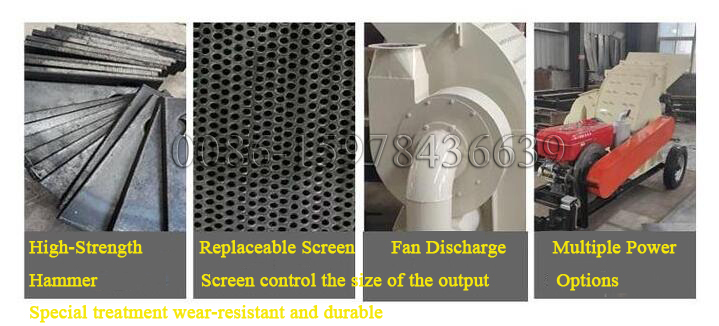

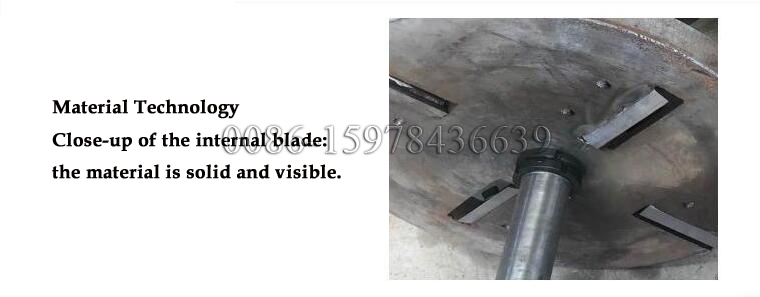

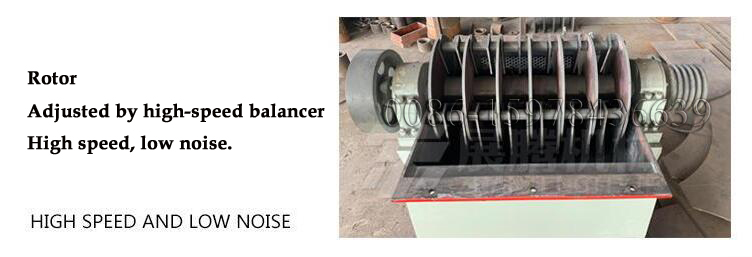

Inside Components

Sawdust Making Machine(图3)

Sawdust Making Machine(图4)

Sawdust Making Machine(图5)

Introduction:

This series of sawdust making machine is suitable for processing all kinds of wood scraps, miscellaneous wood, logs, bark, straw, straw, roots, branches, templates, bamboo plywood for packaging, shelves, brackets, pallets and other wooden frames, and waste wooden furniture. Various types of wood are processed into coarse and fine crushing to realize the recycling of waste wood.


There are multiple feed inlets with complete functions. It can crush logs and sticks with larger diameters, as well as branches, tree branches, corn cobs, corn cobs, crop straws, etc. with smaller diameters. It can also crush corn kernels, Soybeans, sorghum, Chinese herbal medicines, etc. are widely used in crop crushing, landscaping projects, mushroom cultivation, machine-made charcoal plants, bio-organic fertilizer plants, biomass pellet plants and other small and medium-sized enterprises and individual businesses.


Sawdust Making Machine(图8)Sawdust Making Machine(图7)

Sawdust Making Machine(图11)Sawdust Making Machine(图29)

Model

500-5

600-6

700-8

800-8

1000-8

1300-8

Blade Dia.(mm)

450

550

650

750

950

1100

Hammer No.(pcs)

20

30

40

60

70

90

Hammer Size(mm)

180*60*8

180*60*8

230*60*8

230*60*8

230*60*8

230*60*8

Blade Length(mm)

120*70

120*70

150*70

230*80

230*80

230*80

Front Inlet(mm)

500*280

600*300

700*300

800*300

1000*400

1300*400

Side Inlet(mm)

180*200

200*220

220*230

230*260

260*330

330*330

Speed(r/min)

2900

2900

2600

2600

2400

2400

Host Power(kw)

15-22

30-37

45-55

55-75

75-90

90-110

Fan Power(kw)

unibody

unibody

7.5

7.5-11

11

11-15

Capacity(kg/h)

700

800

2000

2500

3000

4000
