Wood Chipper

Wood Chipper Raw Material:

Wood Log         Tree Trunks

                  Branches          Bamboo Poles

  Bamboo Poles            Wooden  BLocks

            Shavings           Bamboo  Branches

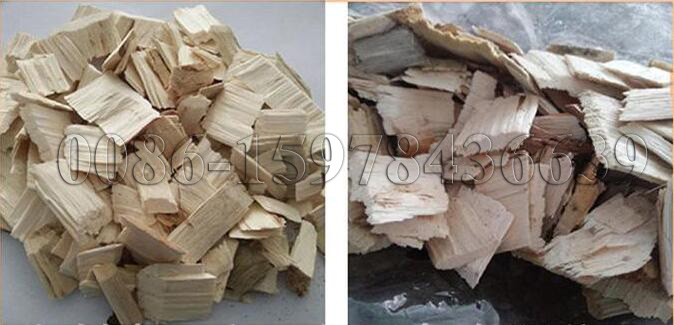

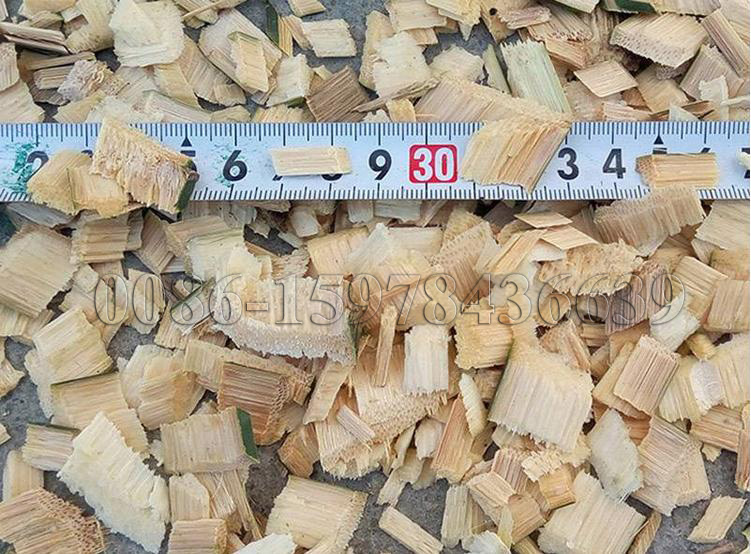

Outlet Chips 3-7cm

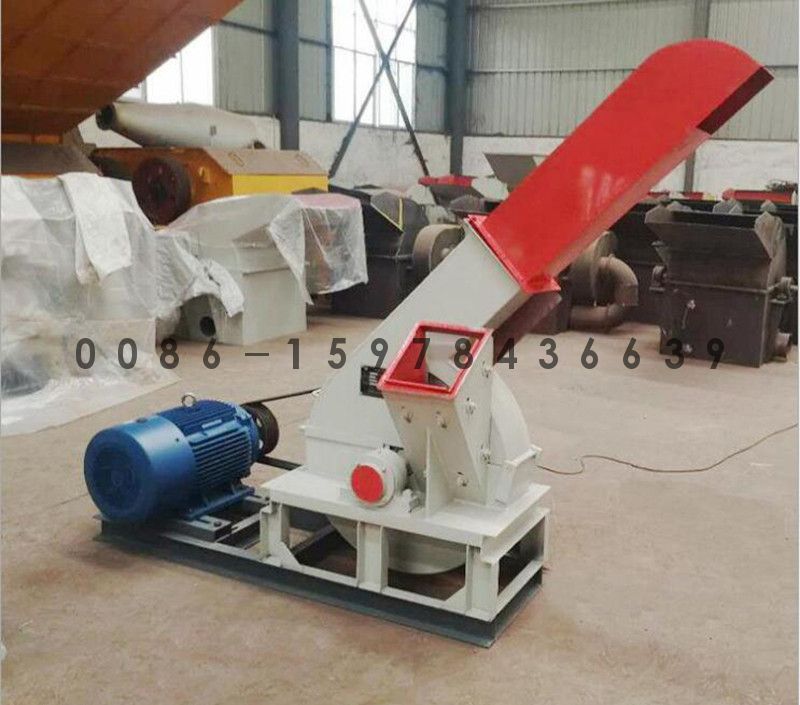

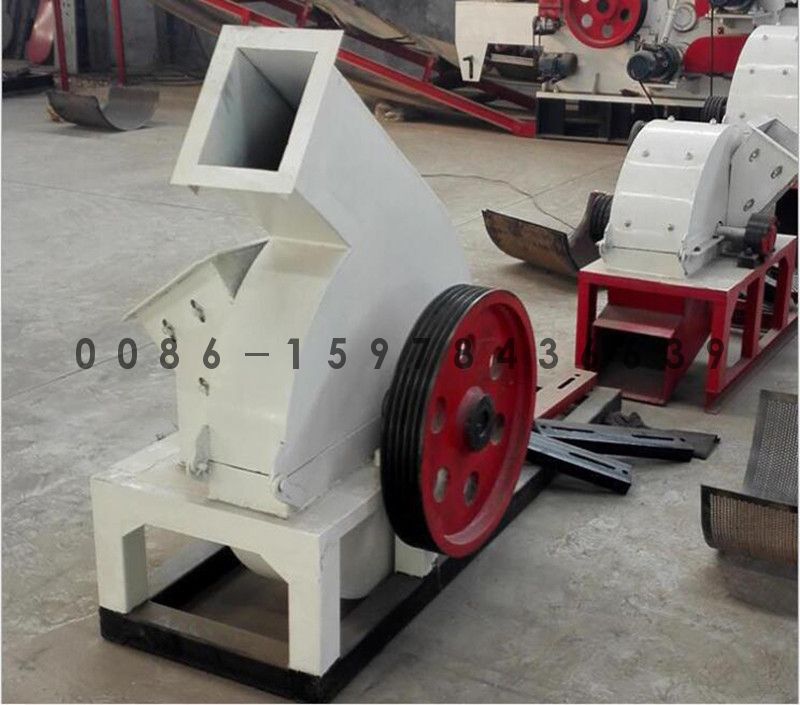

The Electric Wood Chipper is a special equipment for producing wood chips. Wood chipper, also called wood slicer, is one of the series of wood processing equipment. The main cutting raw materials of this machine are peeled small-diameter wood, bamboo, board and bark wood and the remaining materials of harvested secondary fuel wood. However, for materials that are too thick (above 350mm), too thin (below 30mm), too short (below 250mm), too thin (below 5mm) and irregular raw materials (undecomposed tree stumps, branches, etc.), the uniform cutting function is not sufficient, or the raw materials are simply cut. It is a forestry machine that cuts the residues from forest logging and wood processing into craft wood chips by cutting them on the original basis and not fully slicing bamboo with a wall thickness less than 5 mm. It has the function of layered cutting.

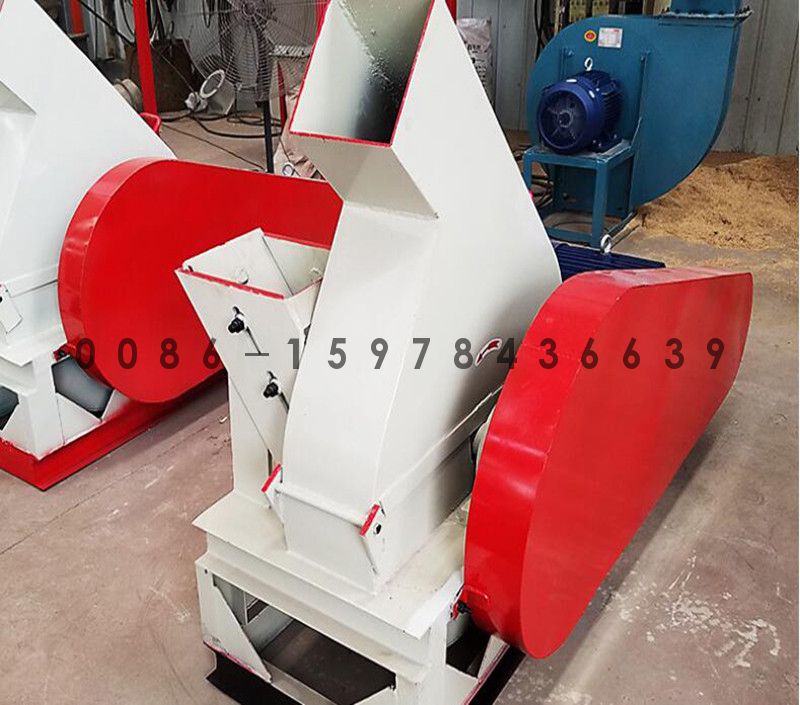

Inside of a wood chipper, It consists of a cutterhead, cutting knife, bed knife, cutterhead blades, etc. There is a groove on the front of the cutterhead for installing the cutting insert, which is arranged 10° to 15° radially. There is a wedge-shaped adjustment block at the bottom of the blade to adjust the extension of the blade; a distance adjustment block is installed at the rear to adjust the compensation length of the blade after sharpening. There is a through gap on the cutterhead along the direction of the blade, and the whittled wood chips can be transferred to the other side of the cutterhead. Blades are evenly arranged on the outer edge of the cutterhead. The airflow generated by the blades blows the wood chips out of the discharge port. After screening, the oversized pieces enter the crusher and are crushed. This machine has three types: few-knife, multi-knife and spiral-faced cutter. The uniformity of the wood chips cut by the first two types is poor. The spiral-faced cutterhead type chipper has all the cutting surfaces in contact with the cutterhead during the cutting process. The unit The pressure is small, the wood chips are cut neatly, there are few wood fragments, the cutterhead wear is small, the length of the cut wood chips is consistent, and the qualified rate of cutting wood chips can reach about 97%.

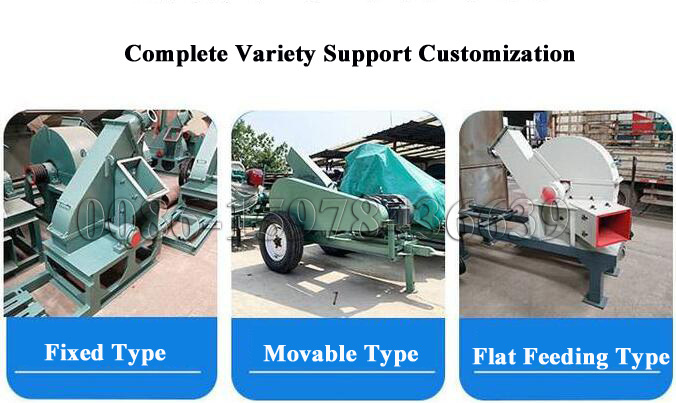

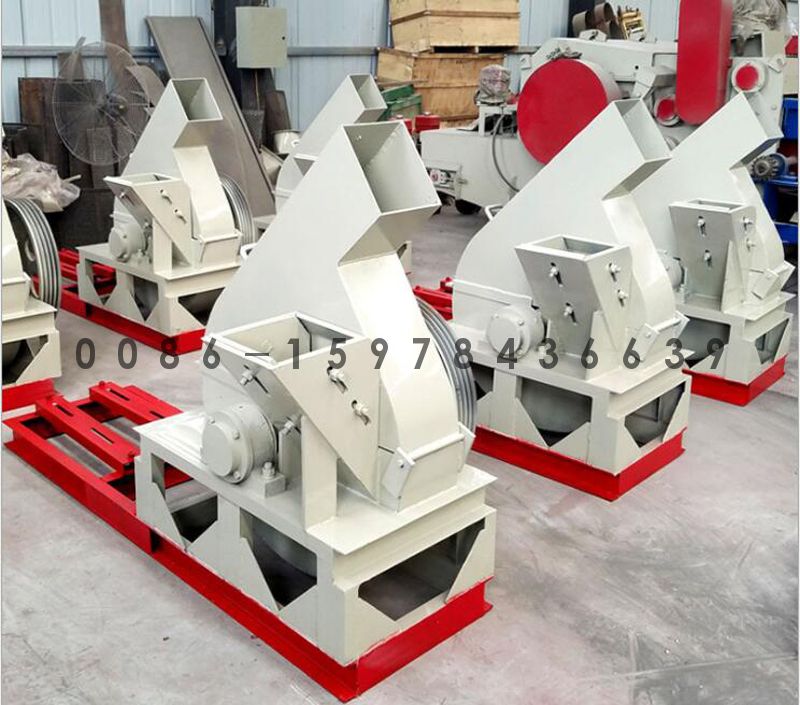

The Forest Master Wood Chipper are divided into two types according to the number of knives on the cutterhead: ordinary chippers (4-6 knives) and multi-knife chippers (8-6 knives). These two chipper feeding methods include oblique feeding and flat feeding (or horizontal feeding). The chipping of long logs is generally fed by a flat mouth. The chipping of short logs and boards can be fed by an oblique mouth or a flat mouth. Chipper This series of disc chippers has a compact structure, reasonable layout, easy installation, convenient operation and maintenance, and high production capacity. When cutting logs, the quality of the wood chips is high, and the length of the wood chips can be freely adjusted within the specified range. It is the most advanced in the country. disc chipper.

 Industrial Wood Chipper Technical  Parameter:
